Our largest 24V kit includes 8 high-efficiency 200W monocrystalline panels featuring 9 busbars, paired with our 60A MPPT charge controller. Ideal for most off-grid applications, this kit can be combined with a 400AH 24V battery bank to power RVs, boats, trailers, cabins, and more. Enjoy a quieter, cleaner energy experience—go solar today!

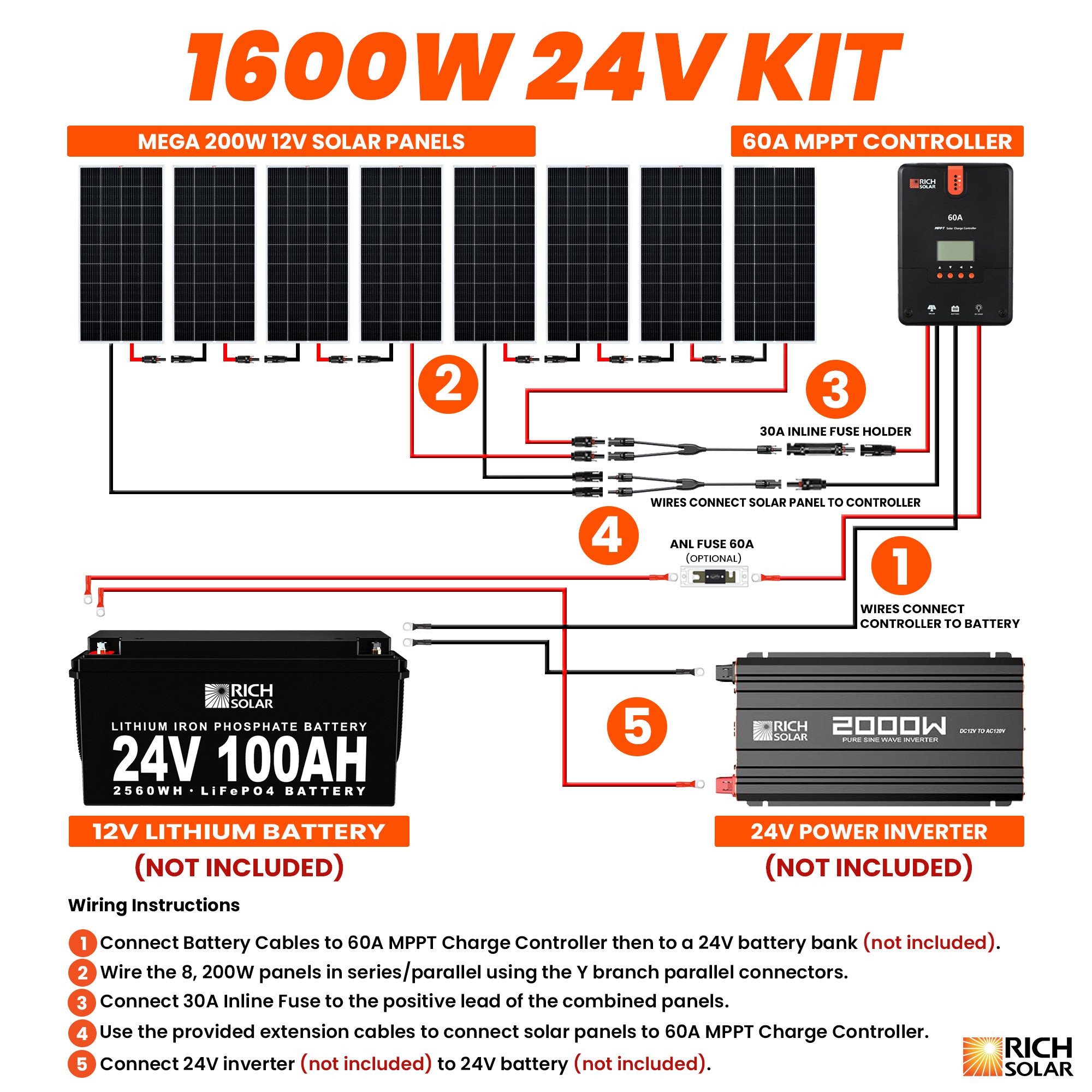

Package Includes:
- 8 x 200 Watt Monocrystalline Solar Panels (RS-M200)
- 1 x 60A MPPT Solar Charge Controller (RS-MPPT60)
- 1 x 20' #10 Gauge Solar Cable – Red (RS-20101)
- 1 x 20' #10 Gauge Solar Cable – Black (RS-20101)
- 1 x 10' #8 Gauge Battery Cable – Red (RS-810)
- 1 x 10' #8 Gauge Battery Cable – Black (RS-810)
- 8 x Mounting Z Brackets (RS-ZB4C)
- 1 x 30A Inline Fuse Holder with Fuse (RS-SC30F)
- 1 x Y Branch Parallel Adapter (RS-T2)
High-Efficiency Solar Panel
Each 200W panel is built with premium-grade monocrystalline solar cells and features an anti-reflective coating to increase light absorption and boost overall output efficiency.
Simple Installation
Installation is quick and easy thanks to the pre-assembled wiring harness—no crimping tools required. All components are plug-and-play compatible for seamless expansion or upgrades.
Reliable and Convenient
The included MPPT digital charge controller provides real-time performance data including volts, amps, and amp-hours. It also protects your system from overcharging for long-term durability.
25-Year Output Warranty
Invest with confidence—your panels are backed by a 25-year output performance warranty for reliable, long-lasting power generation.
200W Solar Panel Specifications
- Maximum Power (Pmax): 200W
- Maximum Power Voltage (Vmp): 20.4V
- Maximum Power Current (Imp): 9.80A
- Open Circuit Voltage (Voc): 24.3V
- Short Circuit Current (Isc): 10.2A
- Weight: 26.5 lbs
- Dimensions: 58.7 x 26.8 x 1.4 in
- Warranty: 25 Years Output Warranty
